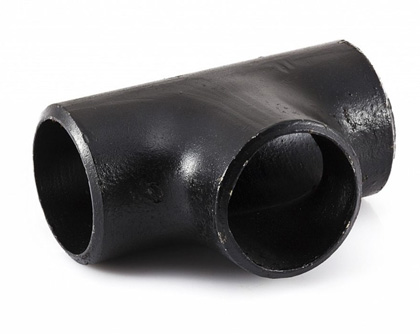

The pipe tee is a kind of pipe fitting which connect with steel pipe through welding directly. Certainly, the pipe tees also called triplet or three way and “T” pieces can be applied to either combine or split a fluid flow. Most common tees are with the same inlet and outlet sizes, while reducing tees can be availed as well.
Pipe tee fitting has T-shaped with two outlets, at 90° to the connection to the main line. Please follow our descriptions to know more about pipe tees:
Reducing Tee
Equal Tee
Stainless Steel Pipe Tee
ASTM Straight Pipe Tee
Pipe tees have three female openings in a T-shaped.
There are straight pipe tees which have the same size openings.
Reducing pipe tees have one opening of different size and two openings of the same size.
There are sanitary pipe tees which are used in waste lines. These kinds of pipe tees have a curved branch which is designed for a clean out plug. They are used to prevent obstruction of waste.
A compression pipe tee uses compression fittings on two or more ends.
A test pipe tee has a threaded opening. This opening is used in conjunction with a threaded plug for a clean-out opening on a drain pipe.
Butt Weld Equal Tee Dimensions of ASME B16.9:
Nominal Pipe Size(mm) |
Outside diameter at bevel(mm) |
Center-to-End | |
---|---|---|---|
Run (C) | Outlet(M) | ||
1/2" | 21.3 | 25 | 25 |
3/4" | 26.7 | 29 | 29 |
1" | 33.4 | 38 | 38 |
1 1/4" | 42.2 | 48 | 48 |
1 1/2" | 48.3 | 57 | 57 |
2" | 60.3 | 64 | 64 |
2 1/2" | 73.0 | 76 | 76 |
3" | 88.9 | 86 | 86 |
3 1/2" | 101.6 | 95 | 95 |
4" | 114.3 | 105 | 105 |
5" | 141.3 | 124 | 124 |
6" | 168.3 | 143 | 143 |
8" | 219.1 | 178 | 178 |
10" | 273.0 | 216 | 216 |
12" | 323.8 | 254 | 254 |
14" | 355.6 | 279 | 279 |
16" | 406.4 | 305 | 305 |
18" | 457.0 | 343 | 343 |
20" | 508.0 | 381 | 381 |
22" | 559.0 | 419 | 419 |
24" | 610.0 | 432 | 432 |
♦ Carbon steel: ASTM/ASME A234 WPB-WPC
♦ Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
♦ Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
♦ ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
♦ ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
♦ Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
♦ High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
►Chemical processing
►Petroleum
►Waste treatment, Marine
►Industrial equipment
►Automotive
►Gas compression and distribution industries
►Pipe Tees are also recommended for industrial plant fluid power systems.
★Type of pipe tee— welded or seamless
★Standard
★Size and dimension
★Wall thickness
★Material
★Durability and Economical
★High pressure and temperature resistance
★Corrosion resistance etc.
